Air Shower Door

Brief Description:

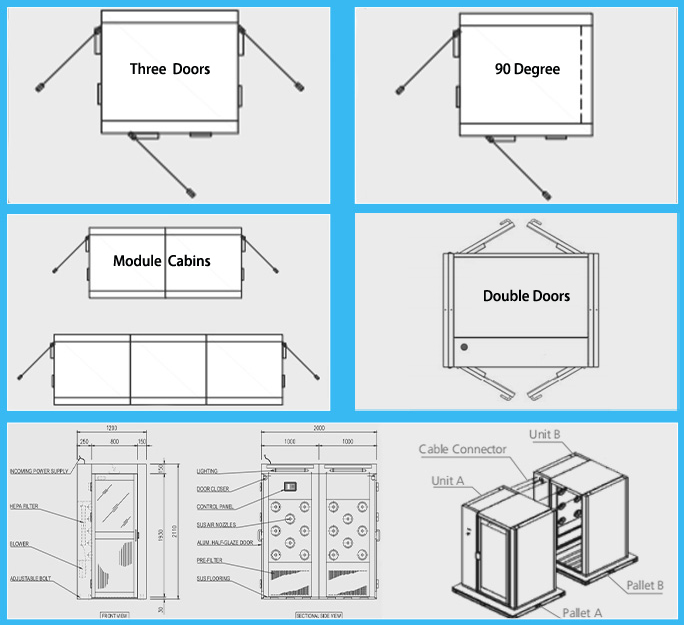

LIPU air shower door is one of our manual opening door air shower . accordint to the size of the air shower , we have one pc door air shower and two pcs door air shower . and the out frame materials can be 304 /201 stainless stell ,or roll cold plate . it is the most pop air shower in the food plant and printing and packing company .


Product Detail

Product Details

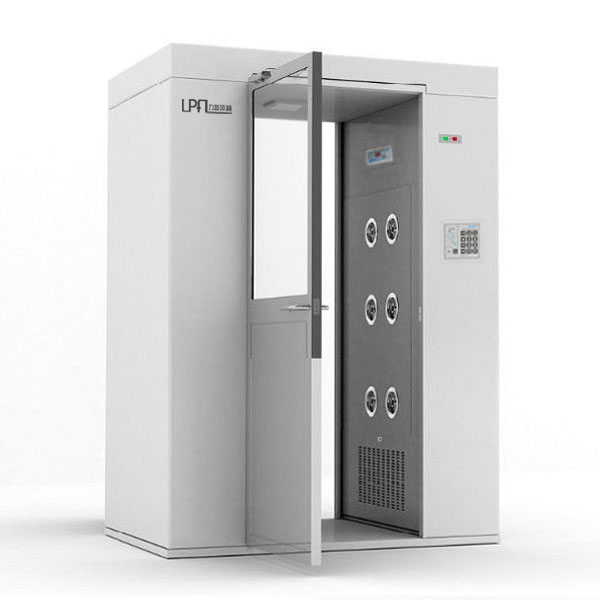

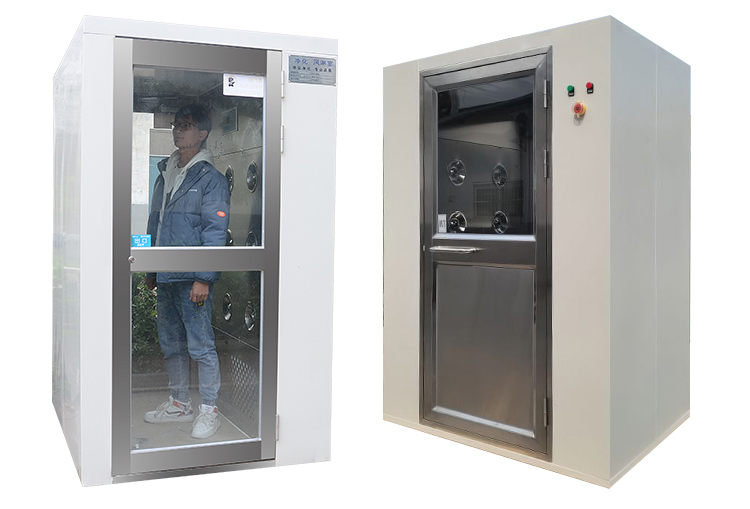

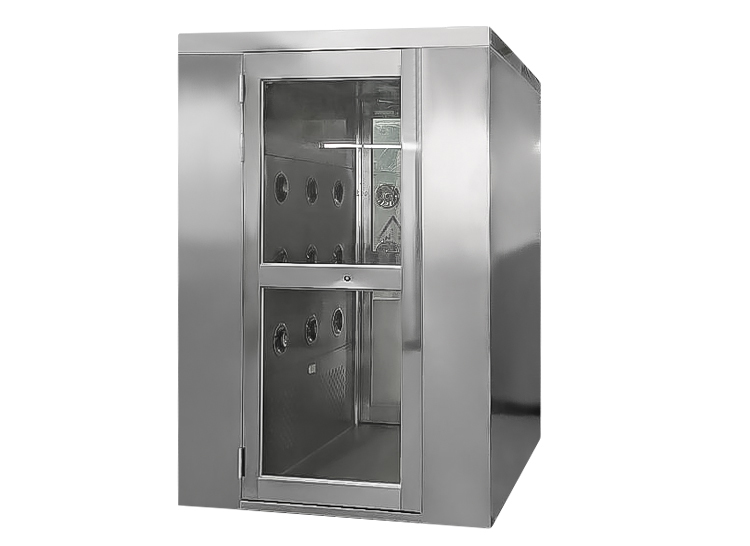

Swing door Air shower is a specialised enclosed antechamber.They utilize high-pressure, HEPA, or ULPA altered air to remove dust, brous-airborne lint and other contaminants from personnel or surfaces of goods efficiently.meanwhile, its Air Lock function may effectively control personnel passing in and out, as well as act as various levels of buffer room for clean room to prevent cross pollution

Product Feature:

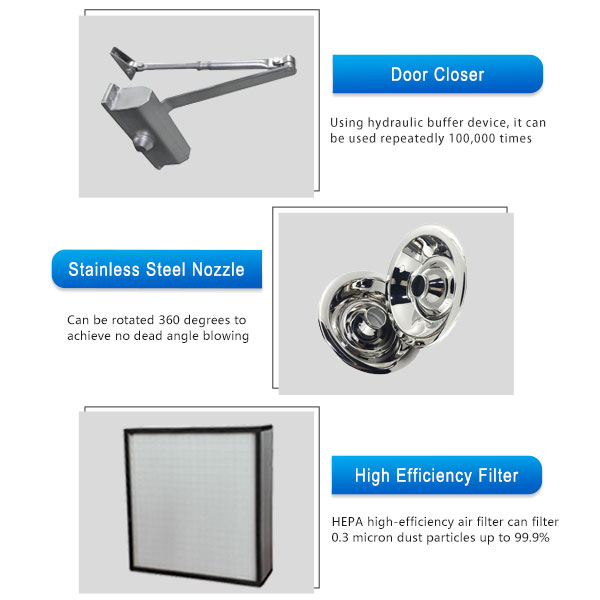

1. G4 primary and H13 high-efficiency filter with partition, 2-stage filtration to ensure purification effect;

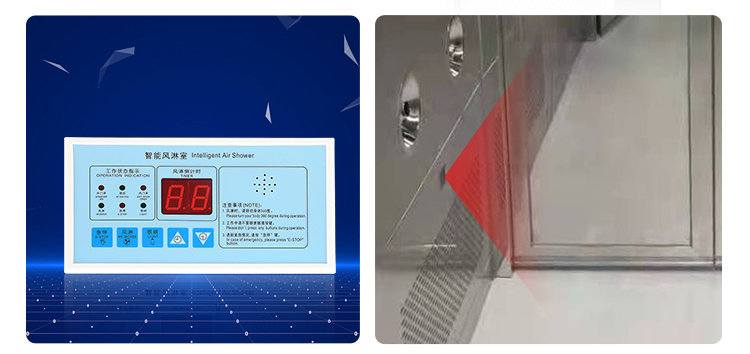

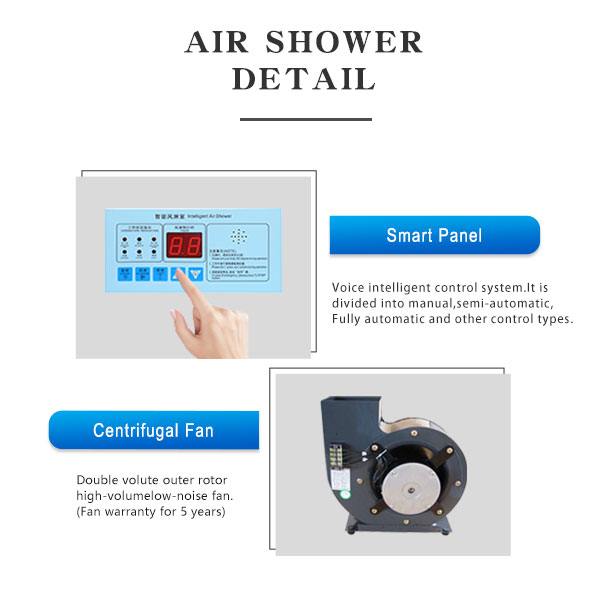

2. High-quality infrared induction automatic blowing and showering, electronic interlocking device;
3. Multi-angle adjustable stainless steel nozzle, blowing on left and right sides, can achieve a good blowing effect;

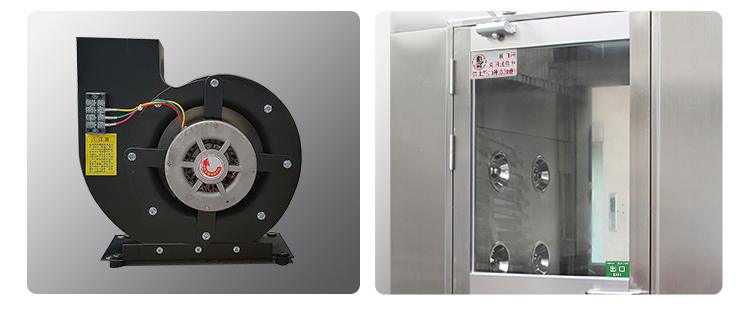

4. Equipped with large air volume and low noise blower, the surface wind speed is greater than 25m/s;
5.The products are inspected in accordance with US Federal Standard 209E to ensure product quality.

ModelWLB1-2WLB2-2WLB3-2
Number of passenger .   1 person2-3 persons 3-4 persons
Frame MaterialsStainless steel 201/304 or painted cold - rolled steel plate
Nozzle number
12 (each side 6 pcs)24 (each side 12 pcs)24 (each side 12 pcs)
Dia of nozzle                                                                                      30mm
Velocity                                                                                      25m/s ≥
Air shower time                                                                              0-99 s (Adjustable )
Inside Dimension800*910*1980mm800*1410*1980mm800*1910*1980mm
Outside Dimension1400*1000*2100mm1400*1500*2100mm1400*2000*2100mm
Interlock                                                                  Electric interlock or mechanical interlock
