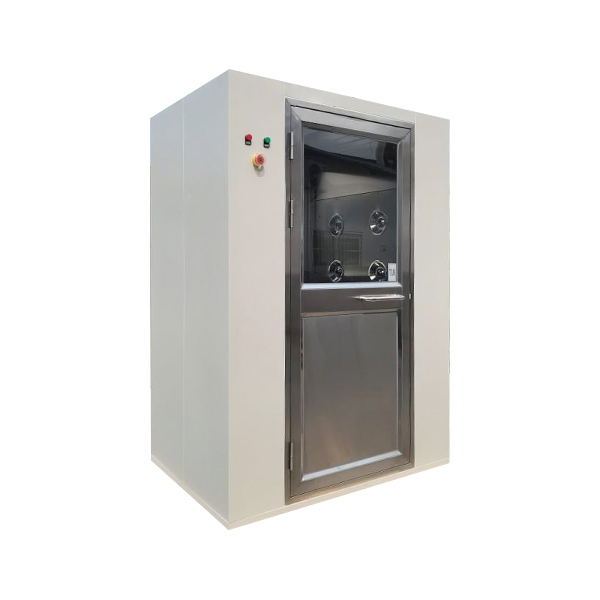

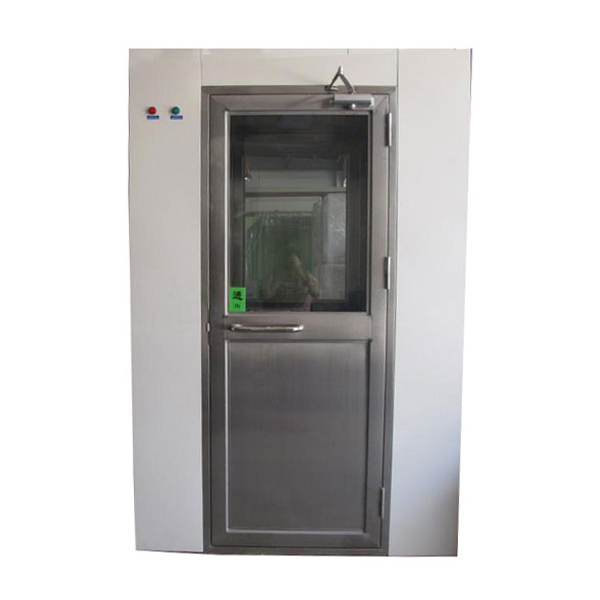

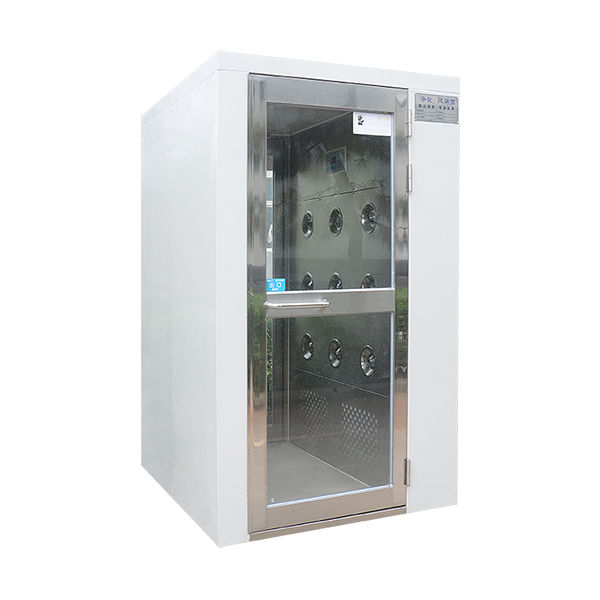

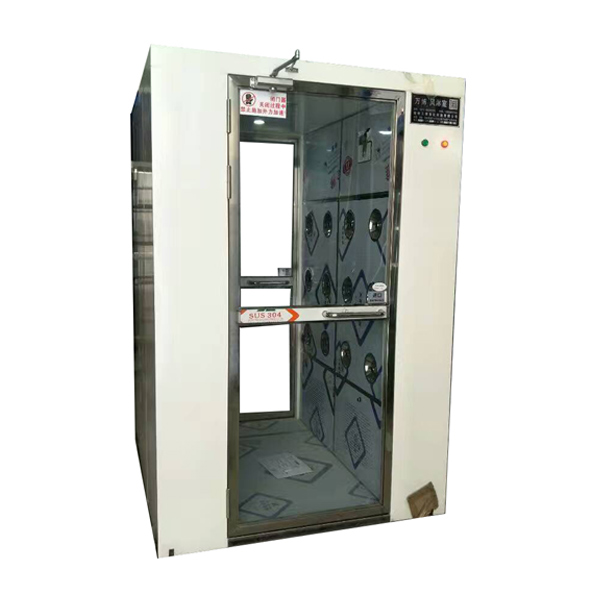

Cold Rolling Plated Air Shower

Brief Description:

LIPU cold rolling plated air shower is the best air shower in our air shower materials . and it has a beautiful apperance and a longer using lifespan .

According to clents requirement , we can add the electronic interlock , contackless opening door ,sole cleaning function.

Send email to us

Product Detail

Product Details

The cold rolling plated air shower 's Features:

1.Photoelectric sensor control, automatic blowing

2.Controlled by Intelligent microcomputer with low failure rate, system safety and stability;

3.Air circulation design to ensure the cleanliness of the air shower area in non-blowing condition

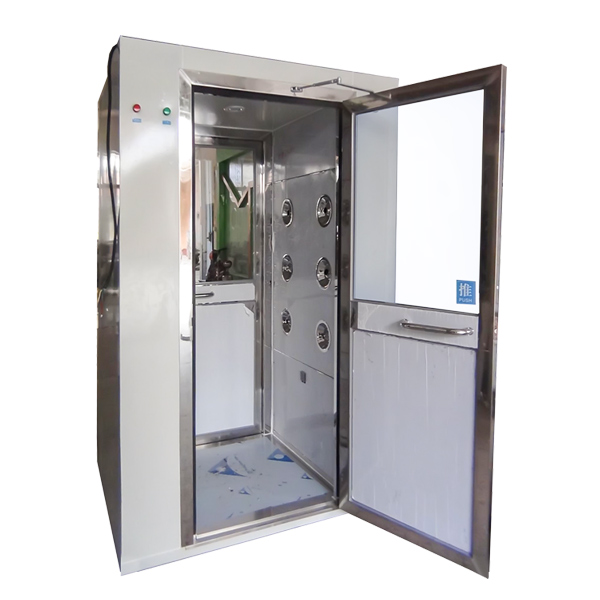

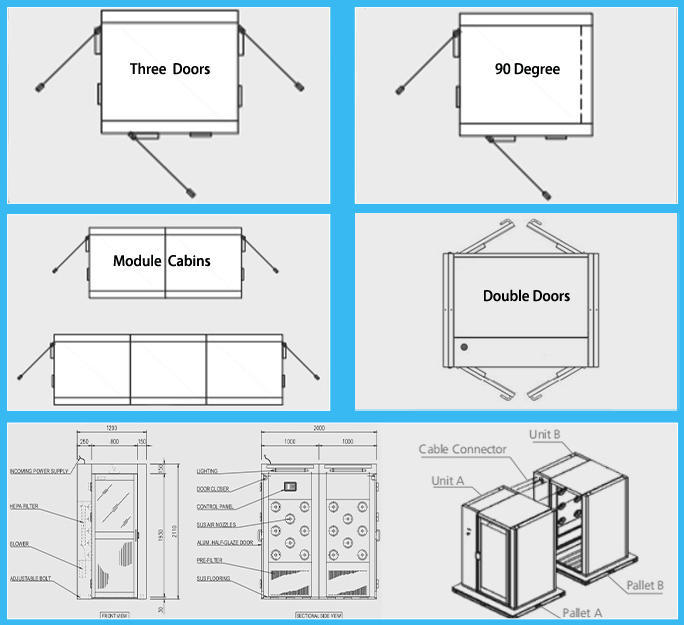

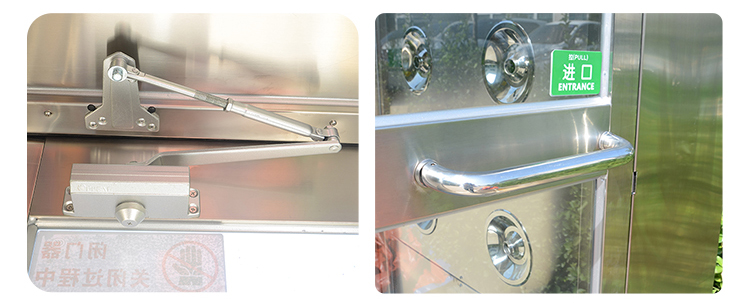

4.double swing door electric interlocking, compulsory blowing, double swing door can be made into automatic sliding door or fast rolling door

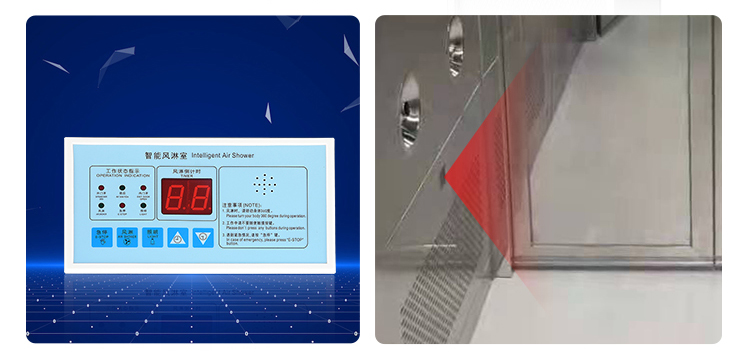

5.The LED indicator light and large-screen dynamic control panel

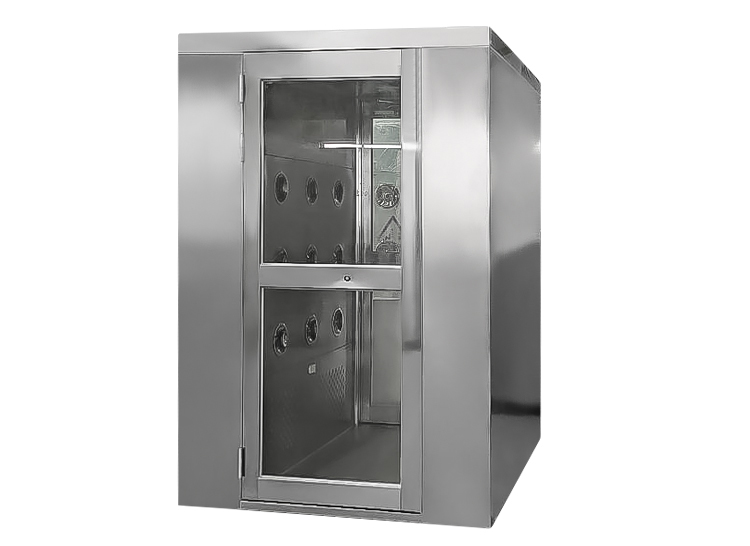

6.Optional materials: premium stainless steel, clean room-approved painted cold rolled steel shell, color steel shell.

Model	WLB1-2	WLB2-2	WLB3-2
Number of passenger .	1 person	2-3 persons	3-4 persons
Frame Materials	Stainless steel 201/304 or painted cold - rolled steel plate
Nozzle number	12 (each side 6 pcs)	24 (each side 12 pcs)	24 (each side 12 pcs)
Dia of nozzle	30mm
Velocity	25m/s ≥
Air shower time	0-99 s (Adjustable )
Inside Dimension	8009101980mm	80014101980mm	80019101980mm
Outside Dimension	140010002100mm	140015002100mm	140020002100mm
Interlock	Electric interlock or mechanical interlock
