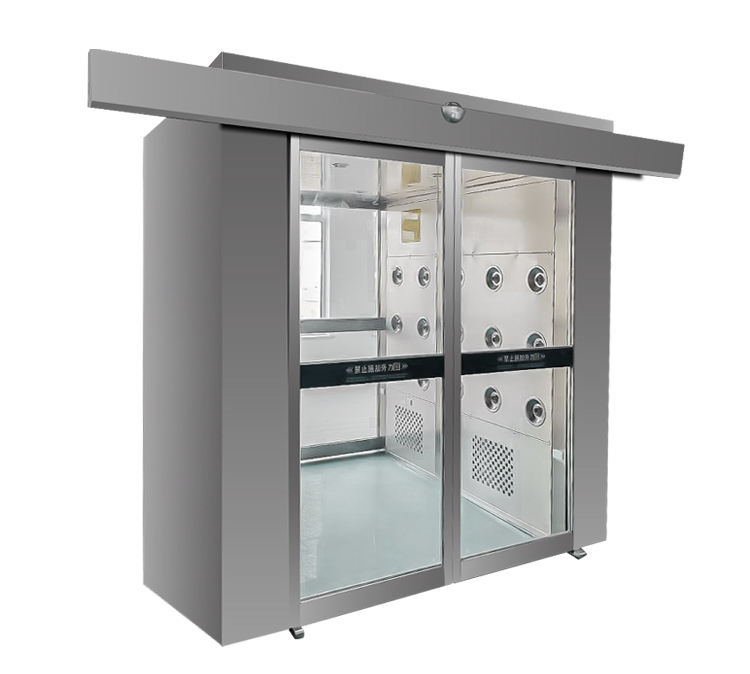

Sliding Door Air Shower

Sliding door Air shower is widely used in LCD and Optoelectronic Display, PCB, microelectronics, dust-free coating, aseptic packaging, medical care, Pharmacy,auto glass and precision parts.

FEATURES:
1,Fully auto controlled by computer, 2 electronic interlocking door, automatically blow and shower.
2,Duration for showering can be adjusted from 0 second to 99 seconds with time display and voice prompt. It is easy to operate
with membrane touch switches.

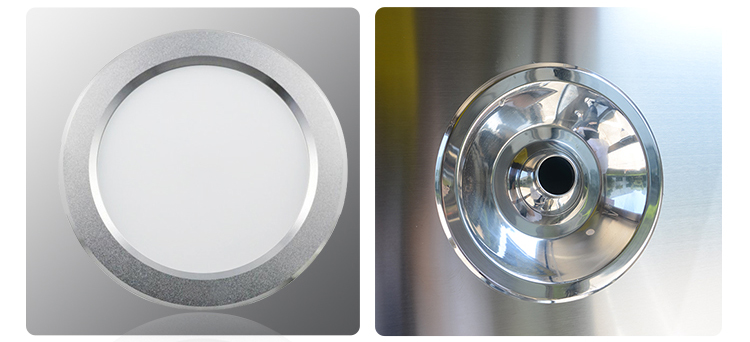

3,Floor and nozzles are made of quality stainless steel.
4,99.99%@0.3μm, Efficiency can reach 99.99%@033μm with pre filter and hepa filter.
5, air velocity can up to 25m/s. professional and fast design, non-standard products.

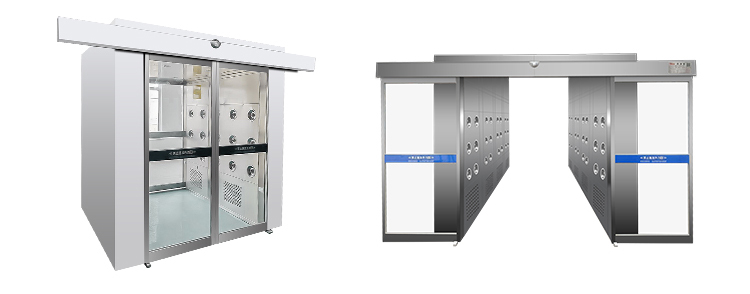

Item	Automatic single door	Automatic double doors	Automatic double doors	Roller shutter door
Model	LP-SD-1	LP-SD-2-1	LP-SD-2-2	LP-RSD
External Size	1400*1000*2180mm	2000*2000*2180mm	Customized	Customized
Internal Size	790*1000*1980mm	1500*2000*1980mm	Customized	Customized
No. of Nozzle	12	24	32 or more	32 or more
Nozzle wind speed	≥25m/s	≥25m/s	≥25m/s	≥25m/s
Hepa Filter	360*630*69  1pc	360*630*69  4pc	360*630*69  4pc	360*630*69  4pc
Frame Material	Stainless steel 201/304 or painted cold - rolled steel plate
Pre filter	775*380*17  1pc	775*380*17  4pcs	775*380*17  4pcs	775*380*17  4pcs
Power	630W	2250W	2250W	2250W
