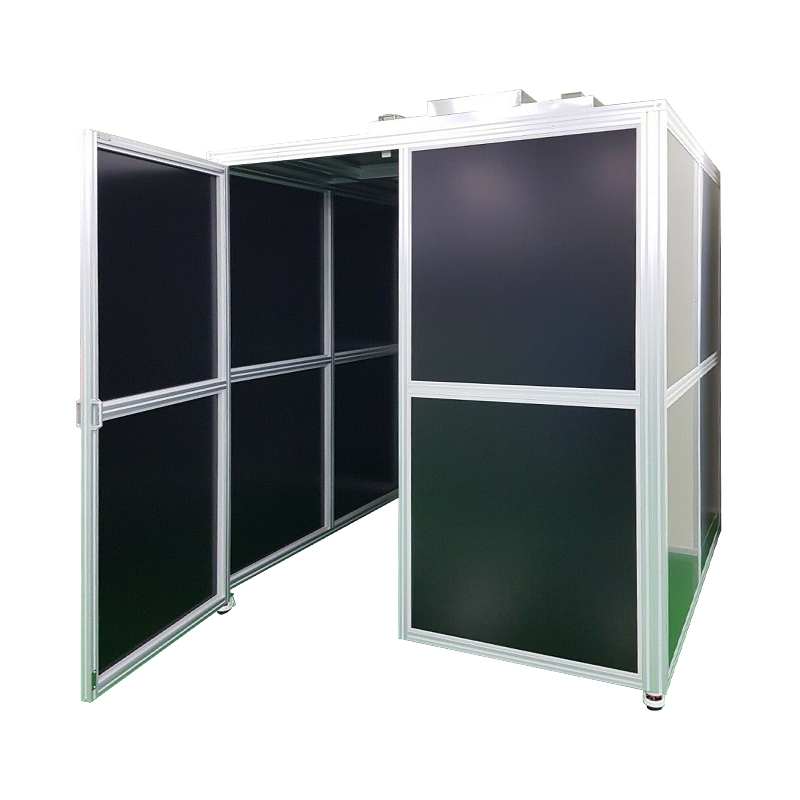

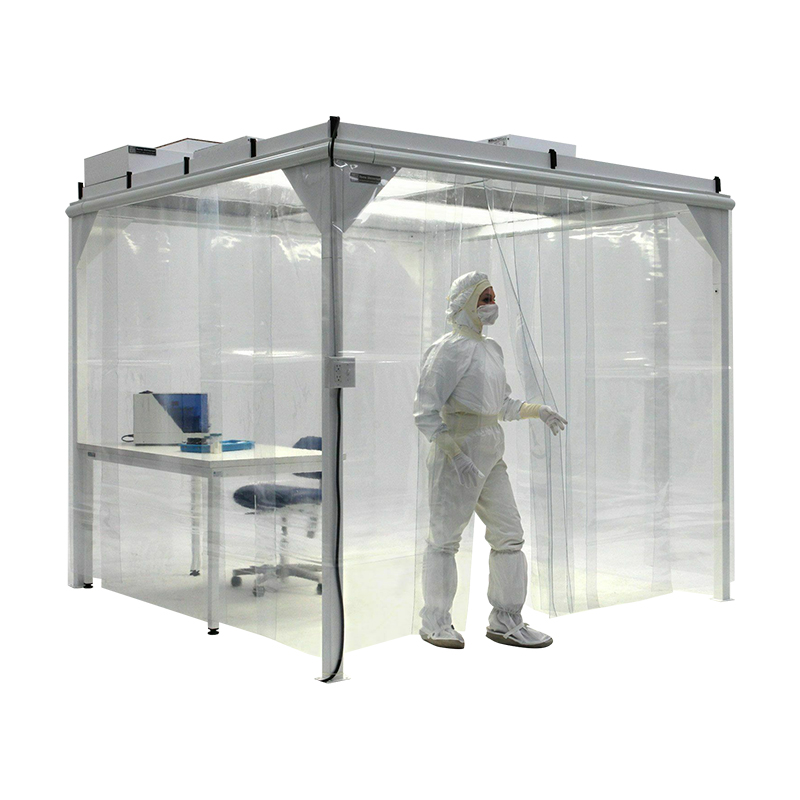

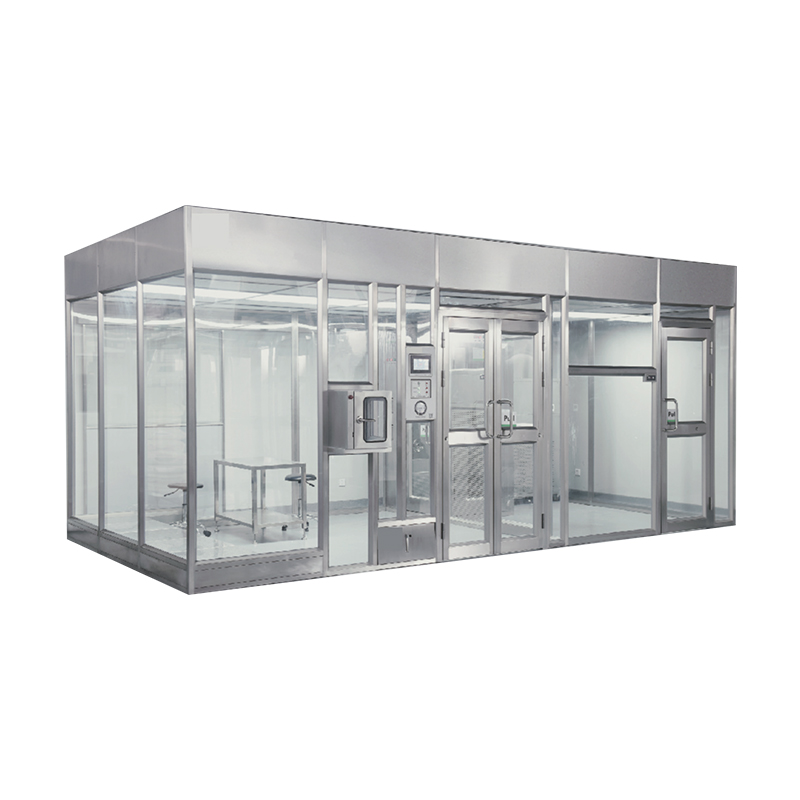

Clean Room Tent

Brief Description:

Product information Clean booth,also known as clean shed or clean workstation. It is quick and easy to create as a simple clean room. Internal clean class can reach up to 100 -100,000 level. In order to reduce the cost of the structure, LIPU machinery has changed the traditional design concept, and used mini-clean unit integrated design which is similar to the SMIF forms



Product Detail

Product Details

Clean booth has a variety of independent clean area, the only difference is not arm connection, but its operation in airtight clean room. It uses independent air-conditioning and return air system, this advantage of design is flexible, interval easily, low construction costs. Clean booth can separate between people and equipment or products effectively, also can minimize human interference and pollution , thereby enhancing the rate of qualified products. Advantages Economy Compared to the traditional civil style clean room, the cost is greatly reduced Efficiency Supply clean vertical airflow, maintaining the clean class level of indoor Convenience A standard 10'' x 10''clean both just take a few hours to install, and easy disassemble Flexibility Bracket type can increase the number of FFU in order to raise the clean class level from ten thousand up to one hundred. Advanced Configuration Use independent HEPA filter or ULPA filters FFU blower consist of advanced clean room


ModelLU-MCR1500

LU-MCR2000

LU-MCR3000LU-MCR5000Customized
Size1500*2000*24002000*3000*24003000*4000*24005000*5000*2400L*W*W*H Customized
MaterialPlexiglass,soft curtain , Anti-static strip curtain    Frame work Cold rolled steel/Aluminum /stainless steel
Clean Class level100100010000100000
Hepa Filter size610*610*691220*610*691220*610*691220*610*691220*610*69
Efficiency(%)                                                                                             99.99%
99.99%
Air Flow40005040756012000
Pre filter size                                                                                            OptionalOptional
Motor Spec                                                                                           220v/50Hz
  220v/50Hz
Noise (dB)6262626262
